Showing all 9 results

Schneider Advanced Touchscreen Panel, Harmony GTO, 320 x 240pixels QVGA, 5.7inch TFT, 96MB
0 out of 5
₦1,502,533.31
Schneider Power Meter PowerLogic PM5110, Modbus, up to 15th Harmonic, 1DO 33 alarms

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has one digital pulse output and 33 configurable alarms. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 13.4 onces (380 g).
Feature-rich power and energy meters

Energy pulse output for remote monitoring

Modbus 485 communication port for remote monitoring

Identify energy savings opportunities with precision accuracy of Class 0.5S

15th Hamronic measurement for Power Quality management
Environmental Data Explained PM51xx_1.5.0_1.6.0
How We Assess Product Sustainability

Instruction Sheet
User Guide
Environmental Disclosure
Product Datasheet
Add to cart
Schneider Circuit Breaker, EasyPact EZC100F, TMD, 30A, 3 poles 3d
0 out of 5
₦275,664.73
Schneider Circuit Breaker, EasyPact EZC100F, TMD, 30A, 3 poles 3d

EasyPact EZC100F is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 10kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 30A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100F is compliant with international standards (IEC 60947, UL 508) and marine certifications.
Outstanding durability with the features you need

Easy to order and stock

High quality: using advanced manufacturing methods and premium materials

Modular design helps to increase the shop floor efficiency, enables faster delivery of switch boards

Answers to the most stringent application with most reliable distribution systems ensuring continuity of service
Environmental Data Explained
How We Assess Product Sustainability
Add to cart
Schneider Circuit Breaker, EasyPact EZC250F, TMD, 160A, 3 poles 3d
0 out of 5
₦150,813.14
Circuit Breaker,EasyPact EZC250F, TMD, 250A, 3 poles 3d

This is a 250A circuit breaker for EasyPact EZC250N. This product can work below rated operational voltage(Ue) 550VAC at 50/60Hz or 250VDC network. The ultimate breaking capacity(Icu) is shown differently, depended on the condition of network, Ics=50%Icu if need to match. This version of product is designed 4 poles frame with detection on 3 poles, equiped TMD trip unit for thermal-magnetic protection. It is compliance with standard IEC60947, CE certification and some independent lab(KEMA,ASEFA,TUV) or third-party Tilva. This device is certified for operation in pollution degree III environment as defined by IEC60947, and pass the test of extremely atmospheric conditions. Device can be mounted vertically or horizontally in a metal enclosure, and against from safety risk by padlocking. The degree of protection is IP40 for direct rotary handle, and IP54 for extended rotary handle. This series have slots used for indication or voltage release auxiliaries positioning , depending on where it is inserted in the device behind the front cover of circuit breaker. The fixed dimension is 140mm(width),165mm(height), 68mm(Depth).
Outstanding durability with the features you need

Easy to order and stock

High quality: using advanced manufacturing methods.

Modular design helps to increase the shop floor efficiency, enables faster delivery of switch boards

Answers to the most stringent application with most reliable distribution systems ensuring continuity of service
Environmental Data Explained
How We Assess Product Sustainability
Add to cart
Schneider Circuit Breaker, EasyPact EZC250F, TMD, 250A, 3 Poles 3d
0 out of 5
₦194,595.94
Circuit Breaker,EasyPact EZC250F, TMD, 250A, 3 poles 3d

This is a 250A circuit breaker for EasyPact EZC250N. This product can work below rated operational voltage(Ue) 550VAC at 50/60Hz or 250VDC network. The ultimate breaking capacity(Icu) is shown differently, depended on the condition of network, Ics=50%Icu if need to match. This version of product is designed 4 poles frame with detection on 3 poles, equiped TMD trip unit for thermal-magnetic protection. It is compliance with standard IEC60947, CE certification and some independent lab(KEMA,ASEFA,TUV) or third-party Tilva. This device is certified for operation in pollution degree III environment as defined by IEC60947, and pass the test of extremely atmospheric conditions. Device can be mounted vertically or horizontally in a metal enclosure, and against from safety risk by padlocking. The degree of protection is IP40 for direct rotary handle, and IP54 for extended rotary handle. This series have slots used for indication or voltage release auxiliaries positioning , depending on where it is inserted in the device behind the front cover of circuit breaker. The fixed dimension is 140mm(width),165mm(height), 68mm(Depth).
Outstanding durability with the features you need

Easy to order and stock

High quality: using advanced manufacturing methods.

Modular design helps to increase the shop floor efficiency, enables faster delivery of switch boards

Answers to the most stringent application with most reliable distribution systems ensuring continuity of service
Environmental Data Explained
How We Assess Product Sustainability
Add to cart
Schneider Circuit Breaker, EasyPact EZC250N, TMD, 200A, 4 poles 3d
0 out of 5
₦275,664.73
Schneider Circuit Breaker, EasyPact EZC100F, TMD, 30A, 3 poles 3d

EasyPact EZC100F is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 10kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 30A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100F is compliant with international standards (IEC 60947, UL 508) and marine certifications.
Outstanding durability with the features you need

Easy to order and stock

High quality: using advanced manufacturing methods and premium materials

Modular design helps to increase the shop floor efficiency, enables faster delivery of switch boards

Answers to the most stringent application with most reliable distribution systems ensuring continuity of service
Environmental Data Explained
How We Assess Product Sustainability
Add to cart

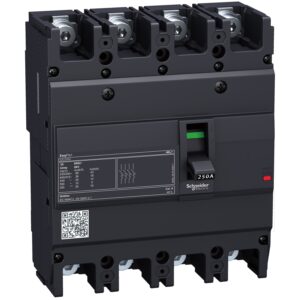

Schneider Circuit Breaker, EasyPact EZC250N, TMD, 250A, 4 poles 3d
0 out of 5
₦72,440.64
Circuit Breaker, EasyPact EZC250N, TMD, 250A, 4 poles 3d

This is a 250A circuit breaker for EasyPact EZC250N. This product can work below rated operational voltage(Ue) 550VAC at 50/60Hz or 250VDC network. The ultimate breaking capacity(Icu) is shown differently, depended on the condition of network, Ics=50%Icu if need to match. This version of product is designed 4 poles frame with detection on 3 poles, equiped TMD trip unit for thermal-magnetic protection. It is compliance with standard IEC60947, CE certification and some independent lab(KEMA,ASEFA,TUV) or third-party Tilva. This device is certified for operation in pollution degree III environment as defined by IEC60947, and pass the test of extremely atmospheric conditions. Device can be mounted vertically or horizontally in a metal enclosure, and against from safety risk by padlocking. The degree of protection is IP40 for direct rotary handle, and IP54 for extended rotary handle. This series have slots used for indication or voltage release auxiliaries positioning , depending on where it is inserted in the device behind the front cover of circuit breaker. The fixed dimension is 140mm(width),165mm(height),68mm(Depth).
- Maintains normal service in undervoltage conditions
- Excellent breaking capacity ensures circuit safety
- Safe to use: embeds thermal-magnetic trip unit providing magnetic protection
- Compliant with multiple international standards
- Certified for operation in heavily polluted environment
Environmental Data Explained
How We Assess Product Sustainability
Add to cart
Schneider EZC100N4060 Circuit Breaker, EasyPact EZC100N, TMD, 60A, 4 poles 3d
0 out of 5
₦102,639.22
Circuit Breaker,EasyPact EZC250F, TMD, 250A, 3 poles 3d

This is a 250A circuit breaker for EasyPact EZC250N. This product can work below rated operational voltage(Ue) 550VAC at 50/60Hz or 250VDC network. The ultimate breaking capacity(Icu) is shown differently, depended on the condition of network, Ics=50%Icu if need to match. This version of product is designed 4 poles frame with detection on 3 poles, equiped TMD trip unit for thermal-magnetic protection. It is compliance with standard IEC60947, CE certification and some independent lab(KEMA,ASEFA,TUV) or third-party Tilva. This device is certified for operation in pollution degree III environment as defined by IEC60947, and pass the test of extremely atmospheric conditions. Device can be mounted vertically or horizontally in a metal enclosure, and against from safety risk by padlocking. The degree of protection is IP40 for direct rotary handle, and IP54 for extended rotary handle. This series have slots used for indication or voltage release auxiliaries positioning , depending on where it is inserted in the device behind the front cover of circuit breaker. The fixed dimension is 140mm(width),165mm(height), 68mm(Depth).
Outstanding durability with the features you need

Easy to order and stock

High quality: using advanced manufacturing methods.

Modular design helps to increase the shop floor efficiency, enables faster delivery of switch boards

Answers to the most stringent application with most reliable distribution systems ensuring continuity of service
Environmental Data Explained
How We Assess Product Sustainability
Add to cart

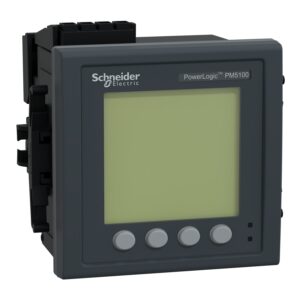

Schneider METSEPM5100 PM5100 Power meter 15thHar 0.5S 1pulse
0 out of 5
₦444,915.44
Schneider Power Meter PowerLogic PM5100, without communication, up to 15th Harmonic, 1DO 33 alarms

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication is pulse output only. The meter also has 33 configurable alarms. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 13.4 onces (380 g).
Feature-rich power and energy meters

Energy pulse output for remote monitoring

Energy pulse output for remote monitoring

Full scape graphical LCD for clear viewing
Environmental Data Explained PM51xx_1.5.0_1.6.0
How We Assess Product Sustainability

Instruction Sheet
User Guide
Environmental Disclosure
Product Datasheet
Add to cart
Schneider Power Meter PowerLogic PM5110, Modbus, up to 15th Harmonic, 1DO 33 Alarms
0 out of 5
₦443,913.95
Schneider Power Meter PowerLogic PM5110, Modbus, up to 15th Harmonic, 1DO 33 alarms

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has one digital pulse output and 33 configurable alarms. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 13.4 onces (380 g).
Feature-rich power and energy meters

Energy pulse output for remote monitoring

Modbus 485 communication port for remote monitoring

Identify energy savings opportunities with precision accuracy of Class 0.5S

15th Hamronic measurement for Power Quality management
Environmental Data Explained PM51xx_1.5.0_1.6.0
How We Assess Product Sustainability

Instruction Sheet
User Guide
Environmental Disclosure
Product Datasheet
Add to cart
