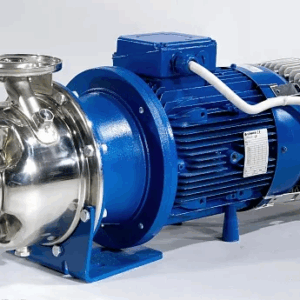

Monoblock centrifugal pump; AISI316 acid-resistant steel body; seal: elastomer/viton; 4kW motor; Type SHE: Direct connection via mounting bracket, with the rotor mounted directly on the motor shaft extension.
Specification:
Efficiency: 9-27 m³/h
Lifting height: 30-46 m
Power supply: single-phase and three-phase 50 Hz
Power: 4 kW
Maximum operating pressure: 12 bar
Pumped fluid temperature: -10°C to 120°C
Suction nozzle: DN50
Discharge port: DN32
Rotor: 195mm
Application: Lowara SH series pumps are used for circulating water and clean liquids in heating, ventilation and air-conditioning systems, and for increasing pressure in industrial applications.
Lowara’s replacement for the SHE/SHS series Lowara e-SH series single impeller, centrifugal, end suction pumps suitable for many applications that require constant or variable duty points in a cost saving operation. Lowara e-SH pumps are manufactured entirely in corrosion resistant AISI 316 stainless steel which makes them suitable for handling water as well as non aggressive or moderately aggressive fluids.
The pumps are equipped with interchangeable mechanical seals, IE3 efficiency motors, and are designed with a back pull-out configuration, which means the impeller, adapter, and motor can be extracted without disconnecting the pump body from the piping system.
Some suitable applications include: process cooling/heating, air conditioning and ventilation systems, liquid transfer, pressure boosting, irrigation and washing/cleaning.
The e-SH pumps come with the standard extended shaft; however, the following are available in the following constructions. Please contact the sales team on 0800 112 3134 if you require one of these versions:
The Lowara e-SH series is a single impeller centrifugal pump made in AISI 316 stainless steel. These series have a pullback design which allows the impeller, adapter and motor to be extracted without disconnecting the pump body from the piping system. Hydraulic efficiency has been improved, which exceeds the ErP compliance of MEI 0.4. IE3 motors are fitted as standard, and IE4 can be obtained by fitting our Hydrovar variable speed drives
DATA SHEET
The pumps are equipped with interchangeable mechanical seals, high efficiency motors, and have a back pull-out design (impeller, bracket and motor can be extracted without disconnecting the pump body from the piping). The ESH series pumps are available in various constructions.

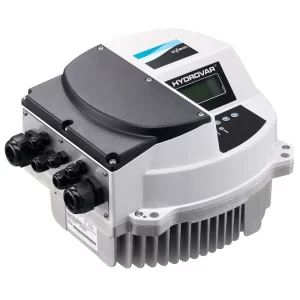

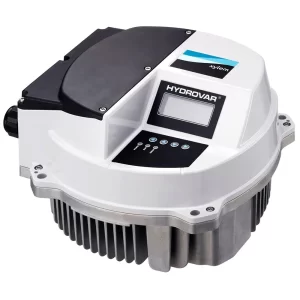

The 5th Generation Hydrovar HVL4.150-A0010 from Lowara is an intelligent controller that matches pump performance to demand. The Hydrovar variable speed drive controls the speed of a standard IEC motor by converting the fixed voltage and frequency from the power supply line.
The pump-mounted version will fit on any standard IEC motor.
Easy to commission, set up & operate with the easy start-up menu
New features include a larger screen display.
No external control panel is needed.
No water hammer
Lower starting current.
Multi-pump capability comes as standard, which allows control from 1 to 8 pumps.
Lower noise from the pump because of lower speeds during operation.
Lowara NSCS 80-160/185/P25VCC4
Centrifugal pumps with axial suction and radial discharge ports, and a horizontal shaft. The pumps are equipped with mechanical seals, IE3 efficiency class motors and have a design that is easy to operate and repair.
Pre-post sales support: We are continuously working closely with our customers to help them in selecting the right pump for the specific application.
